压电陶瓷芯片 | PCh 150 / HPCh 150
PCh 150 / HPCh 150压电陶瓷芯片多层压电陶瓷组成最大推力可高达10000N，这些驱动器可以精密移动，产生的自由行程范围(无负载条件下)从2 µm至4 µm 。驱动器预载最大位移负载时，可以达到最大位移，每种型号对于这点都有相应规定。每种型号最大位移的实际值有所差异，必须通过实验确定，最大位移始终会大于自由行程位移。
平面多层元件
Ø用于超紧凑的执行器布置
Ø用于高轴向共振频率
Ø适用于d31和d33动作
Ø用于力传感/发生器应用
Ø特殊的50 V型，具有非常高的电荷产生率
|
Actor type isi-Stacks |
Ceramic crosssection |
thickness L1) |
Max. Stroke2) |
Capacitance |
Resonance- frequency |
Stiffness |
Blockingforce3) |
Max. Load force |
|
a x b/mm2 |
mm |
μm |
nF |
kHz |
N/μm |
N |
N |
|
|
PCh 50/5x5/2 |
5x5 |
2 |
>3/>2 |
1250 |
> 500 kHz |
500 |
1500 |
2000 |
|
PCh 150/3x3/2 |
3x3 |
2 |
>3/>2 |
30 |
>500 kHz |
190 |
500 |
500 |
|
PCh 150/5x5/2 |
5x5 |
2 |
>3/>2 |
110 |
>500 kHz |
500 |
1500 |
2000 |
|
PCh 150/7x7/2 |
7x7 |
2 |
>3/>2 |
240 |
>500 kHz |
1000 |
3000 |
5000 |
|
PCh 150/10x10/2 |
10x10 |
2 |
>3/>2 |
480 |
>500 kHz |
1900 |
6000 |
10000 |
|
HPCh 150/6-2/2 |
6x2 |
2 |
>3/>2 |
110 |
>500 kHz |
400 |
1500 |
2000 |
|
HPCh 150/8-3/2 |
8x3 |
2 |
>3/>2 |
200 |
>500 kHz |
900 |
2500 |
4000 |
|
HPCh 150/10-5/3 |
10x5 |
3 |
>4/>3 |
375 |
>300 kHz |
900 |
3000 |
4500 |
|
HPCh 150/12-6/2 |
12x6 |
2 |
>3/>2 |
500 |
>500 kHz |
1400 |
5000 |
5000 |
|
HPCh 150/15-8/3 |
15x8 |
3 |
>4/>3 |
790 |
>300 kHz |
1800 |
7000 |
10000 |
|
更多详细信息、需求信息，联系苏州CA888亚洲城光电科技有限公司相关销售人员。 |
||||||||
1) direction of expansion
2) semi-bipolar/unipolar activation
3) blocking force = max. force generation defined for max. semi-bipolar operation

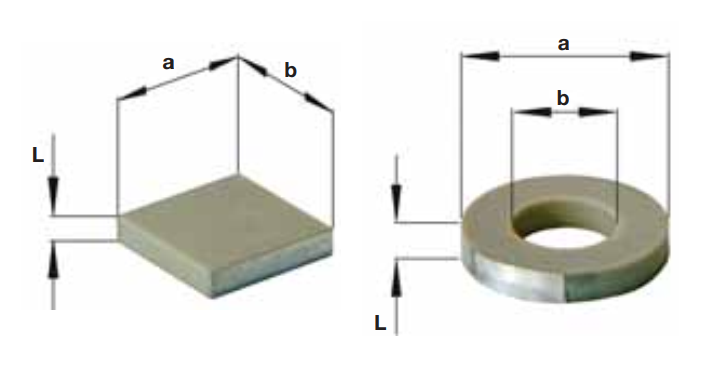

Dimensions
a, b, L
tolerances:
a, b +/- 0.3 mm
L +/- 0.1 mm
Fig. : Piezo-chips PCh, PHCh
Mounting advises: Piezo-chips show very small stroke rates due to their short active length L.
Incorrect mounting will impact force and stroke generation, leading to insufficient performance and unwanted bending and tilting. Please follow instructions in chapter 2.3.
Maximum voltage ranges
PCh 50: (-)10 V/ (+)50 V
PCh 150: (-)30 V/ (+)150 V
Temperature range
-273 °C thru approx. +130 °C
Surface insulation
buried electrode, no coating
